Pallet Rack Systems in Tucson, AZ
Pallet rack systems in Tucson, AZ have to fit two very different building stocks. New 32–36 ft clear tilt-wall distribution centers near the airport and in Marana sit a few miles from 1980s small-bay buildings on Miracle Mile that barely clear 20 ft.
We supply six types of industrial warehouse racking, all new steel, and pick between them from your SKU count, turns, pallet sizes and lift trucks.
Industrial Warehouse Racking We Supply

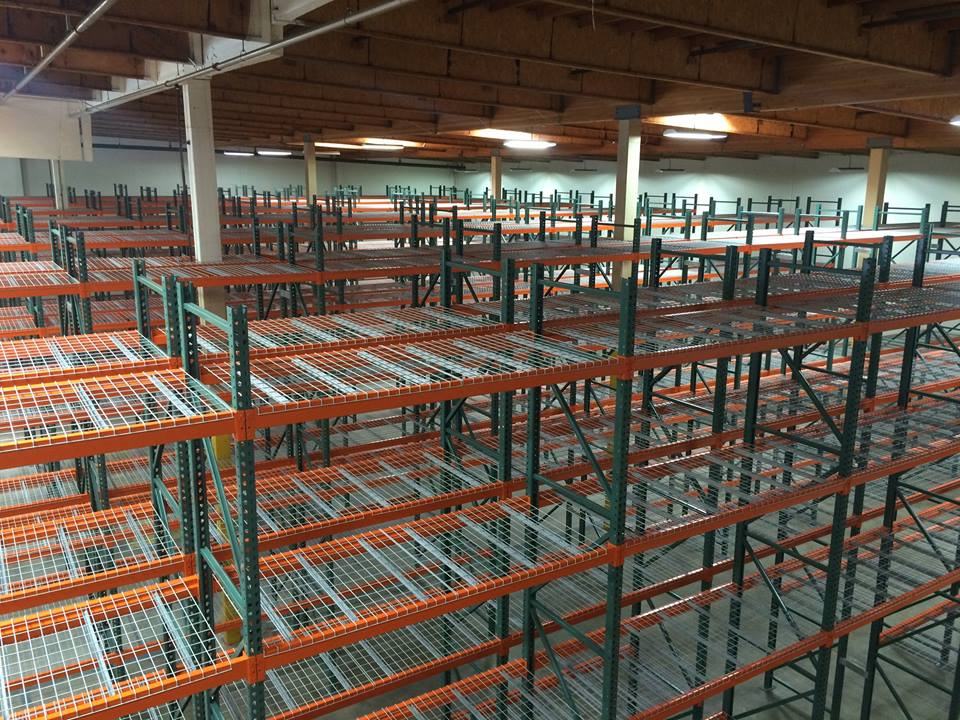

Pallet Rack
Single-deep selective rack. Every pallet reachable from the aisle.
View Pallet Rack

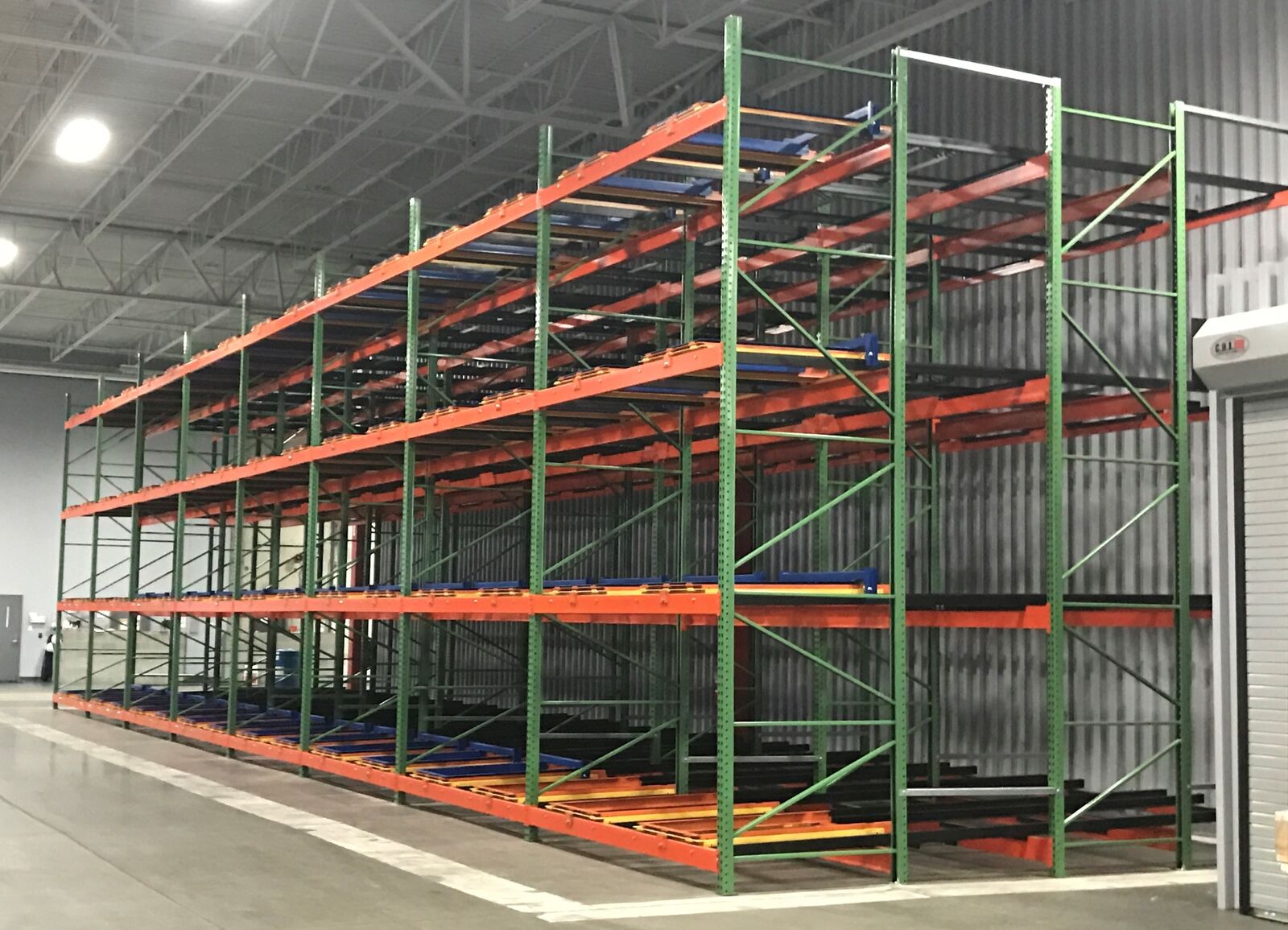

Pushback Rack
2–6 pallets deep from one aisle on nested carts. LIFO by SKU.
View Pushback Rack

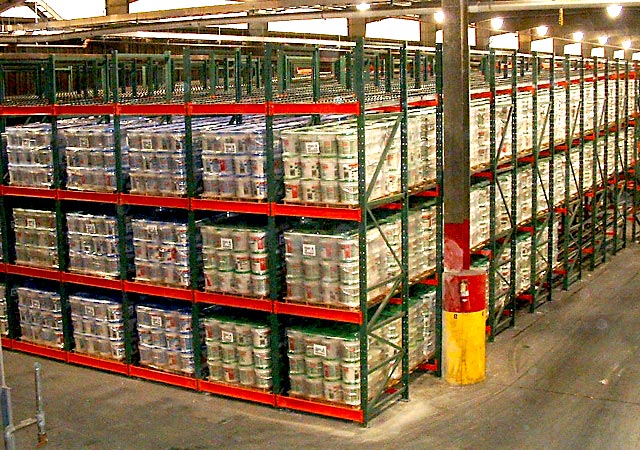

Pallet Flow Rack
Gravity roller lanes, load in back and pick in front. FIFO.
View Pallet Flow Rack

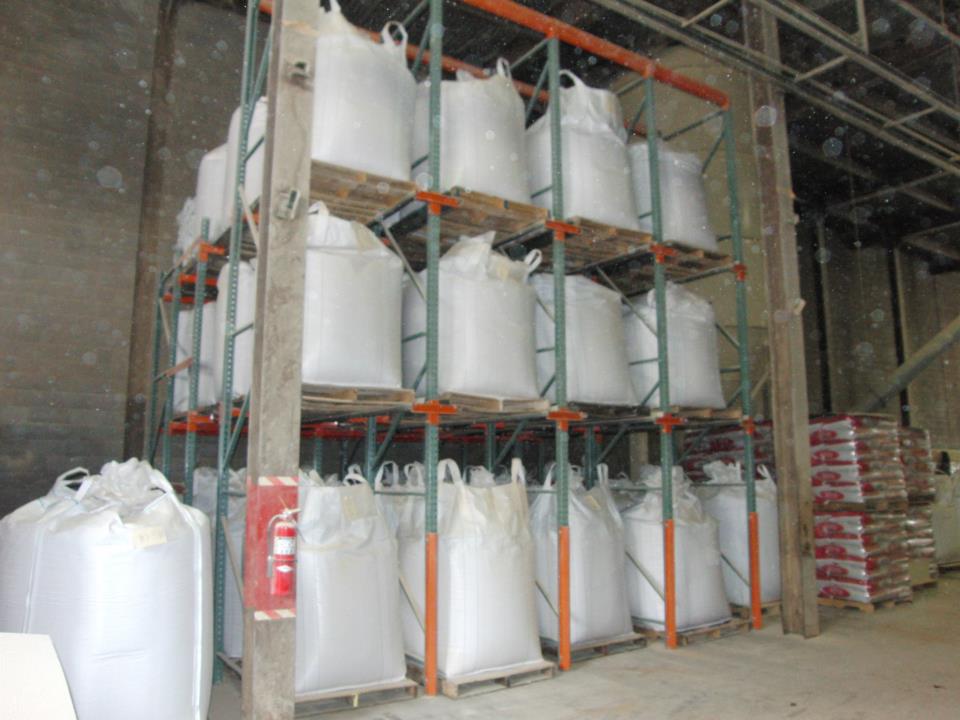

Drive-In Rack
Lift trucks drive into the bay on rails. Bulk storage for few SKUs.
View Drive-In Rack

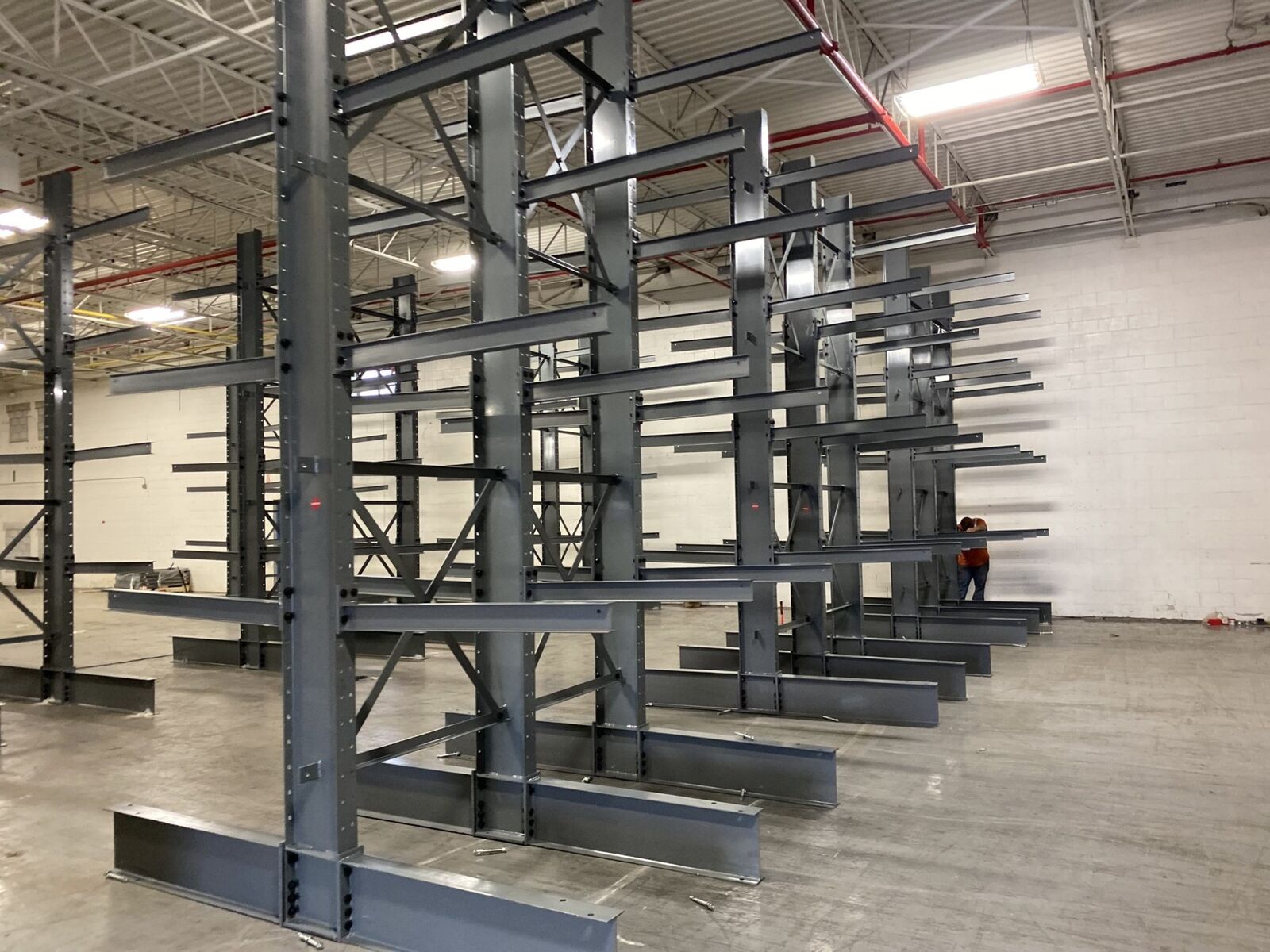

Cantilever Rack
Arms off a column for lumber, pipe, bar and sheet goods.
View Cantilever Rack

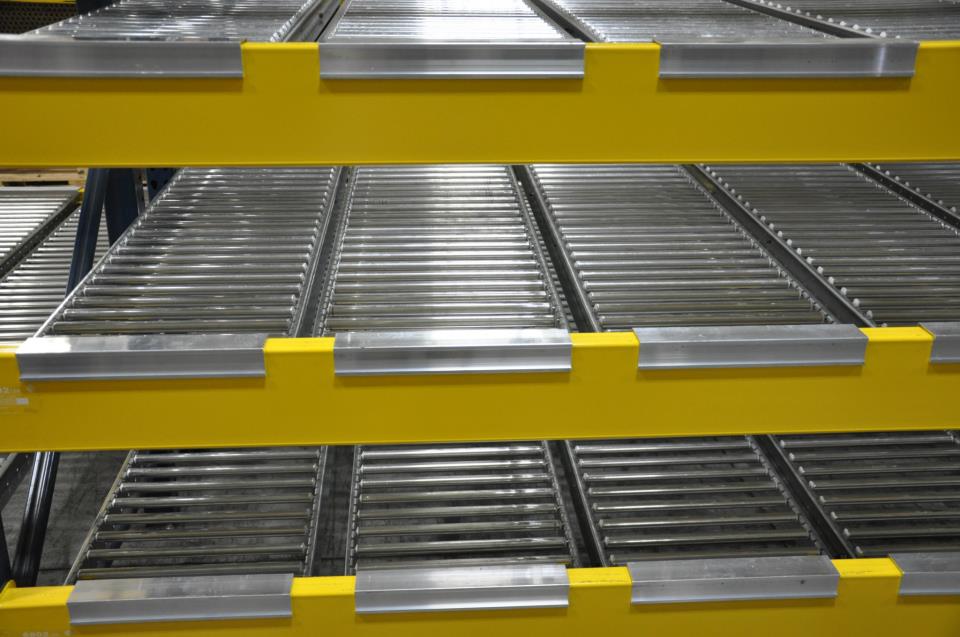

Carton Flow Rack
Wheel beds feed cases forward to the pick face.
View Carton Flow RackChoosing Pallet Racks for a Tucson Building

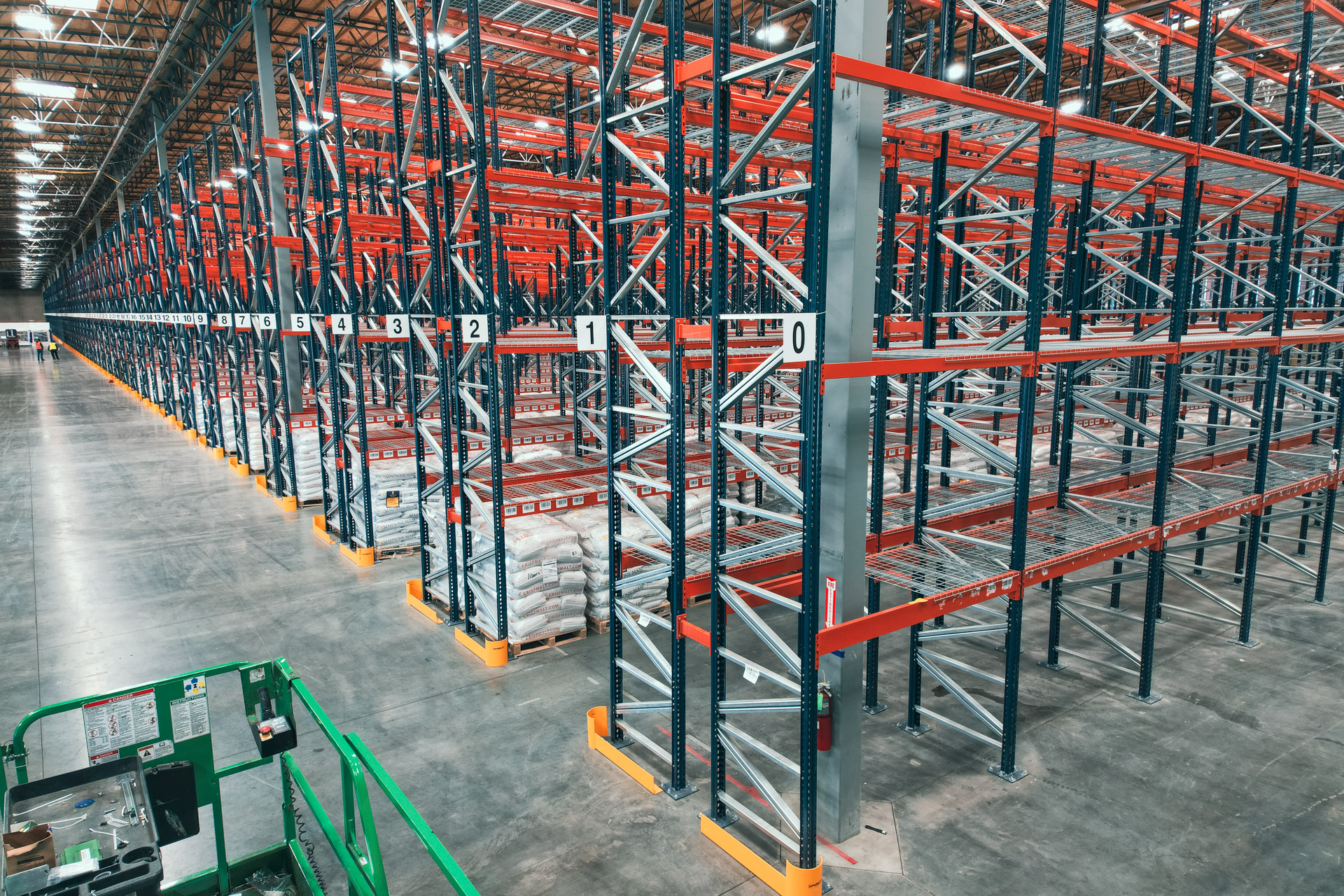

Clear height comes first. At Tucson Commerce Center and I-10 International, a reach truck can work six or seven beam levels. In West Central Tucson and South Tucson, many buildings sit under 24 ft, so the job is fitting one more level and working around columns.
Product comes second. Produce moving up I-19 from Nogales ends up in coolers that want pallet flow or drive-in. Building-material yards near the Port of Tucson want cantilever. E-commerce in Marana wants carton flow at the pick face.
Then the season. Most warehouses here are not air-conditioned and summer highs regularly pass 100 F, so installs start early in the day. Monsoon storms from June 15 to September 30 can hold up deliveries. Changing buildings? See our warehouse relocation service.
Quick Rack Selection Guide
| If you have | Start with |
|---|---|
| Many SKUs, few pallets each | Selective pallet rack |
| Several pallets per SKU, LIFO is fine | Pushback rack |
| Dated stock that must rotate FIFO | Pallet flow rack |
| Bulk of a few SKUs, maximum density | Drive-in rack |
| Lumber, pipe, bar, sheet goods | Cantilever rack |
| Case and each picking | Carton flow rack |
Warehouse Racking Questions
Pallet Racks Across Southern Arizona
Free warehouse consultations, CAD layouts and installation from Tucson up I-10 to Casa Grande, down I-19 to Nogales and east to Sierra Vista and Willcox.
Not Sure Which Rack Fits?
Send pallet sizes and a floor plan. We will draw the options side by side.
